| Model No. |
BWT050 |
BWT075 |
| Flow @ 0 ft. GPH (0 M.) |
4,100 GPH |
5,300 GPH |
| Flow @ 10 ft. GPH (3 M.) |
2,770 GPH |
3,630 GPH |
| Max. Head |
31 ft. |
36 ft. |
| Pump Discharge |
1-1/2" NPT |
2" NPT |
| Motor Type |
PSC |
PSC |
| Voltage |
115 VAC, 60 Hz |
115 VAC, 60 Hz |
| Amps. @ 10 Ft. Total Head |
3.8 Amps |
4.8 Amps |
| Gallons per Watt Hour Used |
6.1 G /Whr |
6.3 G /Whr |
| Speed |
3450 RPM |
3450 RPM |
| Line Cord - Length |
10 ft. (3.0M) |
10 ft. (3.0M) |
| Motor Cooling |
Water-cooled |
Water-cooled |
| Overheating Protection |
Thermal Fused |
Thermal Fused |
| Operation |
Automatic |
Automatic |
| Duty |
Continuous |
Continuous |
| Max. Water Temp. |
104° F / 40° C |
104° F / 40° C |
| Approvals |
UL |
UL |
| Warranty |
3 Year |
5 Year |

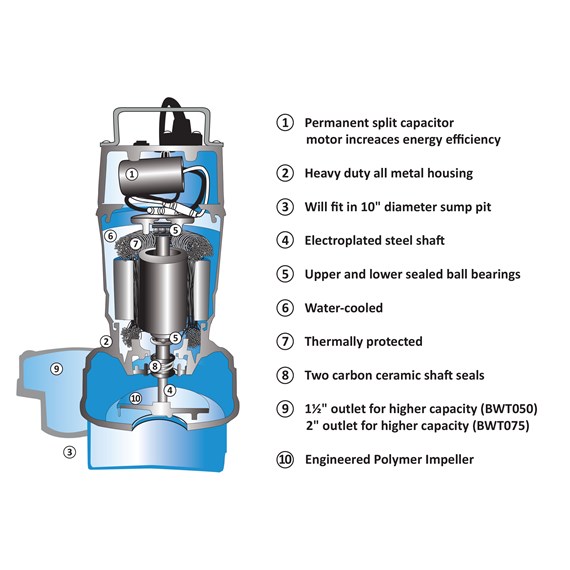

| PUMP CONSTRUCTION |
| Pump Housing |
Cast Iron / Cast Aluminum |
Cast Iron / Cast Aluminum |
| Impeller |
Engineered Polymer |
Engineered Polymer |
| Fasteners |
Stainless Steel |
Stainless Steel |
| Strainer |
Removable Electroplated Steel |
Removable Electroplated Steel |
| Pump Seals |
(2) - Carbon/Ceramic;
(1) - Buna N Exclusion Seal |
(2) - Carbon/Ceramic;
(1) - Buna N Exclusion Seal |
| Motor Shaft |
Electroplated Steel |
Electroplated Steel |
| Bearings |
(2) Sealed Perm.-
Lubricated Ball Bearings |
(2) Sealed Perm.-
Lubricated Ball Bearings |
| Color |
Green |
Green |
| Painting Method |
Powder Coated |
Powder Coated |
| DIMENSIONS |
| Overall Dimensions (DxWxH) |
5" x 7 1/2" x 13 3/4" |
6 1/2" x 10" x 16 1/4" |
| Item Weight |
17 lb. |
28 lb. |
| Carton Dimensions (DxWxH) |
10.38" x 6.0" x 15.0" |
11.25" x 7.5" x 17.38" |
| Shipping Weight |
21 lb |
31 lb |

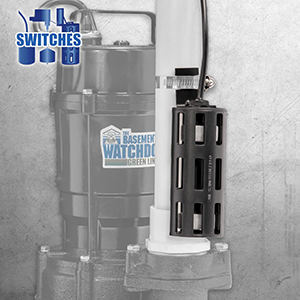

| FLOAT SWITCH AND CONTROLLER |
| Float Type |
Dual, Micro-Reed Switches
with Protective Cage |
Dual, Micro-Reed Switches
with Protective Cage |
| Controller Functions |
Start/Stop Pump w/
10 sec. run time |
Start/Stop Pump w/
10 sec. run time |
| Controller Voltage/Current |
115 VAC / 12 Amps max |
115 VAC / 12 Amps max |
| Max. Inrush Current |
30 A |
30 A |
