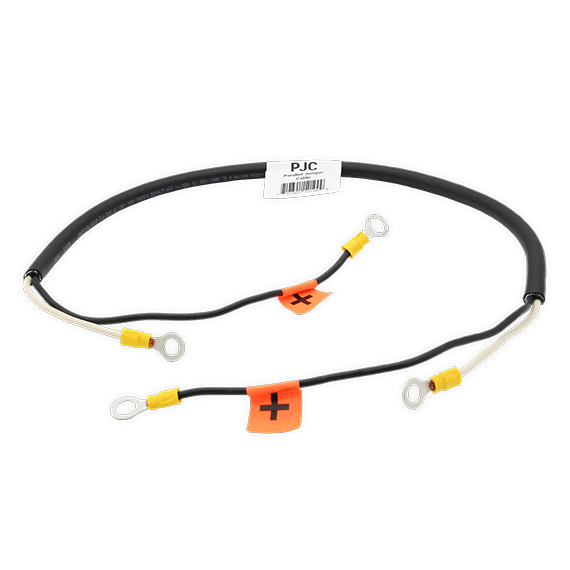

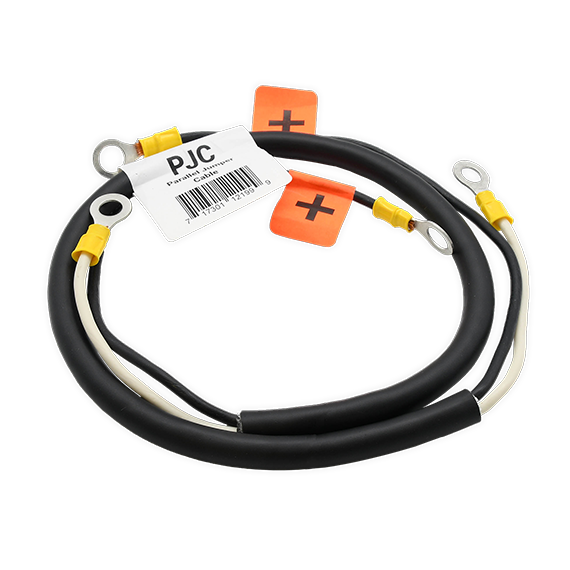

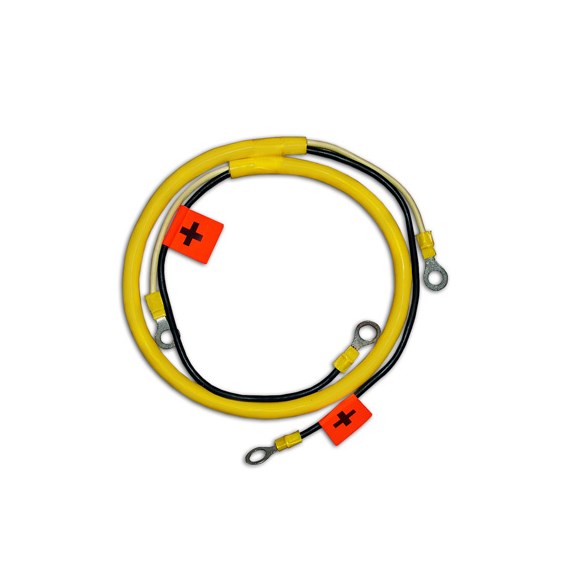

Basement Watchdog Parallel Jumper Cable

Model PJC

FEATURES AND BENEFITS:

Allows for extended sump pump run time
Easy to install and is wired in parallel (positive-to-positive and negative-to-negative)
Connects multiple batteries

Where to Buy

Features Quick Overview

For use with the Basement Watchdog Big Dog backup system

Connects multiple batteries to your system

Double the runtime

Wired in parallel

Added protection from flooding

2-year limited warranty

Features

For use with the Big Dog, Special, and Bog Combo

Connects multiple batteries to your system

Double the run time by hooking up two batteries in parallel

Extends Pump Run Time

Wired in Parallel: Positive-to-positive; negative-to-negative

Added protection from flooding, by extending the run time

Batteries must be of similar age and capacity

Installation

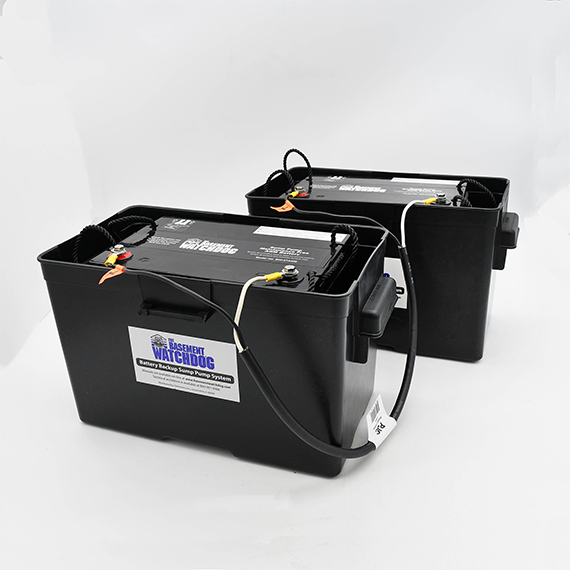

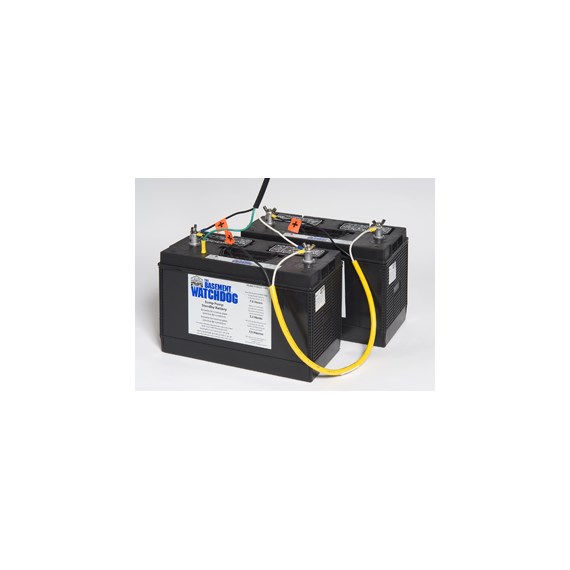

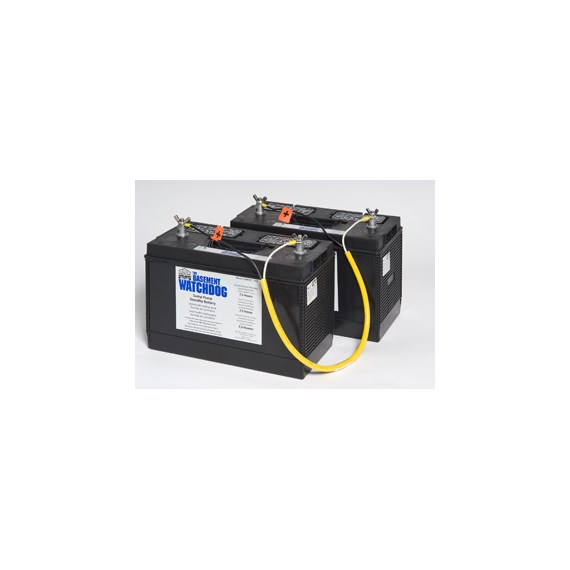

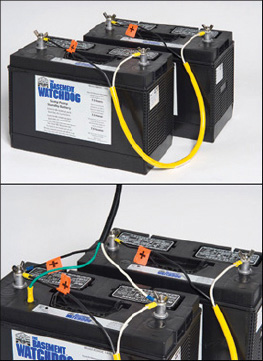

To increase the run time of your system, two batteries can be connected together.

Unplug the system from the wall
Place one battery next to the controller. This will be considered "Battery A"

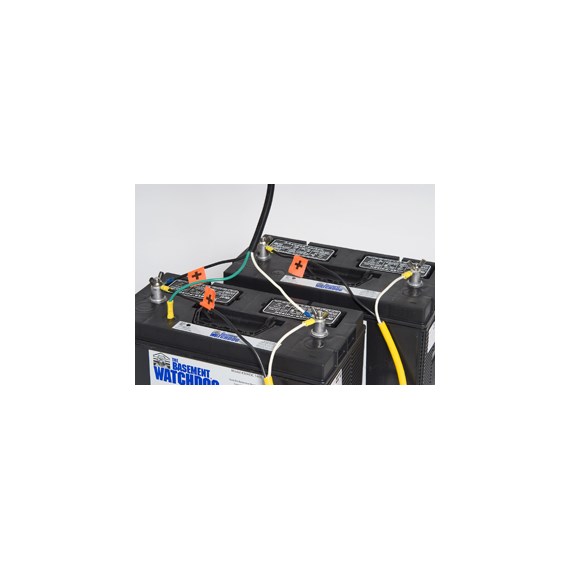

The black wire with the positive (plus) sticker should be placed on the positive (plus) terminal of both batteries
- Tighten the wing nut on to the positive (plus) side of Battery B.
- Now attach the positive (plus) wire from the controller to the positive (plus) post of Battery A, and tighten the wing nut securing both wires.
The white wire should be placed on the negative (-) terminal of both batteries
- Tighten the wing nut on the negative (-) side Battery B
- Now attach the negative (-) wire from the controller to the negative (-) post of Battery A, and tighten the wing nut securing both wires
Insert the fluid sensor into Battery A's insertion point
- You will need to manually monitor the water level in the secondary battery
- We suggest checking it at least every 4-6 months
Plug the control unit back into a grounded AC wall outlet
The system will monitor and charge both batteries
- No external charger is needed for the secondary battery
